SURFACE FINISHING

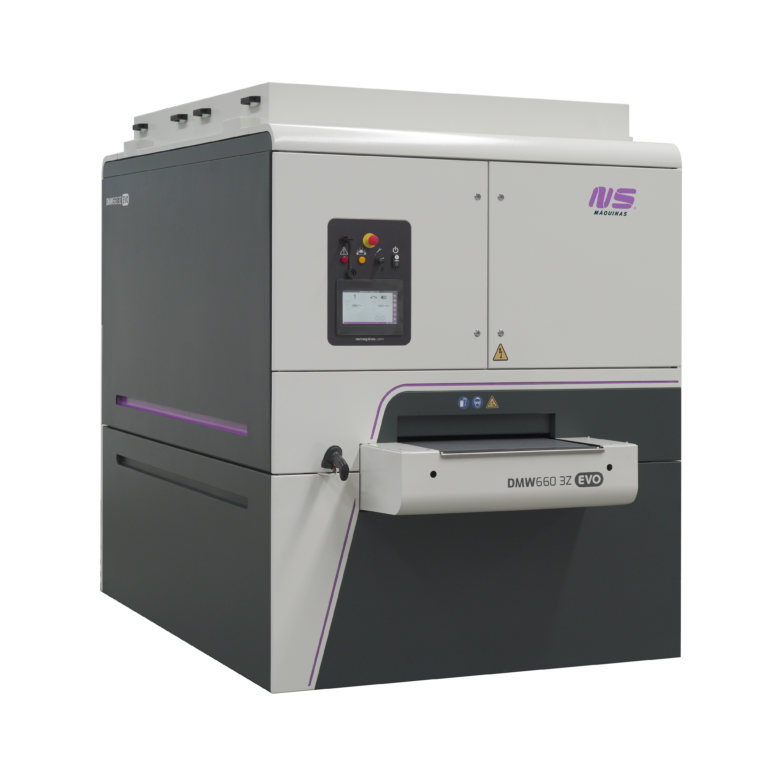

DMW1100 2Z EVO
1 side
1-3
0-2
water cooling
DMW are flat surfaces finishing machines which were designed both for consistent linear finishing and for heavy grinding in flat metal surfaces.
The robust construction combined with the carefully developed and thought-out design for wet operation makes the finishing with water a clean and controlled operation.
The integrated filtration system, stainless steel abrasive stations covers, drying station, and robustness of contact roller design are some of the standard features which make DMW a solid and reliable solution for flat metal sheets finishing and grinding.
Consistent linear finishing
Solid construction, quality materials, and precise assembly result in high-class finishing quality
Stainless steel covers for the abrasive stations
The stainless steel covers around the abrasive belts prevents the corrosion and retains the water in the finishing stations.
Fixed working height
The fixed working height allows the integration with the conveyors before and after the machine for an easier handling of big parts.
Automatic filtering system
The automatic filter assures the continuous renovation and monitoring of the filter paper cleanness.
Drying station
Due to the squeeze rollers and the air blowers the metal sheets leave the machine without water drops, retaining the water inside the machine and keeping the area around clean.
Quick controls access
The easy controls combined with a central touch screen provide a perfect and quick adjustment of the machine, enabling a clear monitoring of machine statistics and alarms.
| DMW1100 2Z | |
|---|---|
| Working capacity (mm) | 1100×120 |
| No. belt stations (Z) | 2-6 |
| Abrasive belt dimensions (mm) | 1100×2200 |
| Abrasive belt speed (m/s) | 25 |
| Feeding speed (m/m) | 4-15 |
| Abrasive belt motor (kW) | (2x) 18.5 |
| Feeding Motor | 0.45 |
| Dimensions (mm) | 2750x2800x2450 |
| Weight approx. (kg) | 5200 |
Ask for a quote
