ML100
- _ max Ø 114mm
  _ straight and curved tubes
  _ 1 station
MLW100
- _ max Ø 114mm
  _ straight and curved tubes
  _ 1 station
ML100 Z
- _ max Ø 114mm
  _ straight tube
  _ 2 or 3 stations
MLW100 Z
- _ max Ø 114mm
  _ straight tubes
  _ 2 up to 6 station
ML50
- _ max Ø 50mm
  _ straight and curved tubes
  _ 1 station
ML75
- _ max Ø 76mm
  _ straight and curved tubes
  _ 1 station

FC120
- _ max width 120mm
  _ dry finishing
  _ 2 stations
FCW120
- _ max width 120mm
  _ water cooling
  _ 1 station
FG170
- _ max width 170mm
  _ dry finishing
  _ 2 stations
FGW170
- _ max width 170mm
  _ wet finishing
  _ 2-6 stations
FG220
- _ max width 220mm
  _ dry finishing
  _ 3 stations
FGW220
- _ max width 220mm
  _ wet finishing
  _ 2-6 stations
FG330
- _ max width 330mm
  _ dry finishing
  _ 3 stations

LMD2500
- _ table 2500mm
  _ 1 station
LMD4000
- _ table 4000mm
  _ 1 station
LMD2500 2Z
- _ table 2500mm
  _ 2 stations
LMD3100 2Z
- _ table 3100mm
  _ 2 stations
LMD2500 AT
- _ table 2500mm
  _ 1 station
  _ automated Version

MP100
- _ max Ø114mm
  _ straight and curved tubes
  _ round tubes
RC200+RC250
- _ max Ø 256mm
  _ straight tubes
  _ 1 station
PP220 2K
- _ max 220mm width
  _ rectangular and square tubes
  and flat bars
PC70 2P
- _ max 60mm
  _ straight tubes
  _ round and square tubes
PL40
- _ belt grinding
  _ wheel polishing
  _ single motor
PL80
- _ belt grinding
  _ wheel polishing
  _ double motor

MBL120
- _ max size 110mm
  _ straight or angle
CLF75
- _ mobile grinding and polishing of heavy plates
LB50
- _ 50mm width
  _ manual belt grinder
LHV200
- _vertical and horizontal belt grinding
LV200
- _ vertical belt grinding
LR30
- _ manual deburring
  and edge rounding
  up to 15mm

TDM100
- _ max 114mm
  _ semi-automatic
  _ 1 station
TDM100 2D AT
- _ max 114mm
  _ automatic
  _2 stations

A
- _ up to 5.5 kW
  _ dry operation
AS
- _ up to 7.5 kW
  _ dry operation
AWN
- _ up to 7.5 kW
  _ wet operation

DM1100 C
- _ edge rounding up to 1100mm
DM1600 C
- _ edge rounding up to 1600mm
DM1600 C EVO
- _ edge rounding up to 1600mm
DM1100 2C EVO
- _ double side
  _ edge rounding up to 1100mm
DM1600 2C EVO
- _ double side
  _ edge rounding up to 1600mm

DM1100 Z
- _ deburring machine up to 1100mm
DM1100 ZC
- _ deburring and edge rounding machine up to 1100mm
DM1100 ZC EVO
- _ deburring and edge rounding machine up to 1100mm
DM1600 Z
- _ deburring machine up to 1600mm
DM1600 ZC
- _ deburring and edge rounding machine up to 1600mm
DM1600 ZC EVO
- _ deburring and edge rounding machine up to 1600mm
DM1100 Z2C EVO
- _ deburring and double side edge rounding machine up to 1100mm

DM1100 DC EVO
- _ deburring and edge rounding machine of thick and heavy plates up to 1100mm
DM1100 DCC EVO
- _ deburring, edge rounding and oxide removal machine of thick and heavy plates up to 1100mm
DM1100 D2C EVO
- _ deburring and double side edge rounding machine of thick and heavy plates up to 1100mm

ML200
- _ max Ø 205mm
  _ straight and curved tubes
  _ 1 station
MLW200
- _ max Ø 205mm
  _ straight and curved tubes
  _ 1 station
MLW200 TC
- _ max Ø 205mm
  _ straight and conic tubes
  _ 1 station
ML300 + ML350
- _ max Ø 356mm
  _ straight tubes
  _ 1 station
RC200+RC250
- _ max Ø 256mm
  _ straight tubes
  _ 1 station
OD120 + OD160
- _ max Ø 160mm
  _ straight or angled tubes
  _ 1 station

FGW330
- _ max width 330mm
  _ wet finishing
  _ 2-6 stations
FGW170 4ZV
- _ max width 170mm
  _ wet finishing
  _ 4 stations (2 sides)
FG220 4ZV
- _ max width 220mm
  _ dry finishing
  _ 4 stations (2 sides)
DM1100 2Z EVO
- _ max width 1100mm
  _ dry finishing
  _ 1-4 stations
DMW1100 2Z EVO
- _ max width 1100mm
  _ wet finishing
  _ 1-4 stations
TR120
- _ side grinding
  _ dry finishing
  _ 1-5 stations

ML100: The go-to choice for round tube polishing

Elevate your surface finishing process with job-shop grinding solutions, specifically engineered for flat surfaces. This newsletter showcases three versatile models perfect for rectangular and square tubes, flat bars, and sheet metal.

FCW120 Z Refining surfaces for museum-grade excellence

Elevate your surface finishing process with job-shop grinding solutions, specifically engineered for flat surfaces. This newsletter showcases three versatile models perfect for rectangular and square tubes, flat bars, and sheet metal.

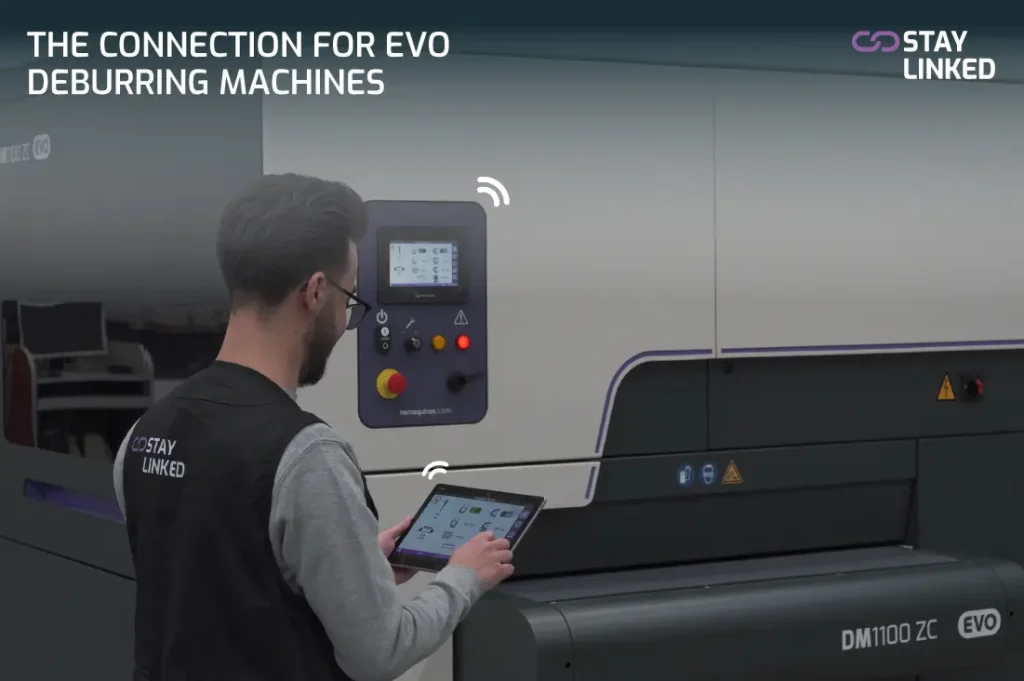

STAY LINKEDThe connection for evo deburring machines

Elevate your surface finishing process with job-shop grinding solutions, specifically engineered for flat surfaces. This newsletter showcases three versatile models perfect for rectangular and square tubes, flat bars, and sheet metal.

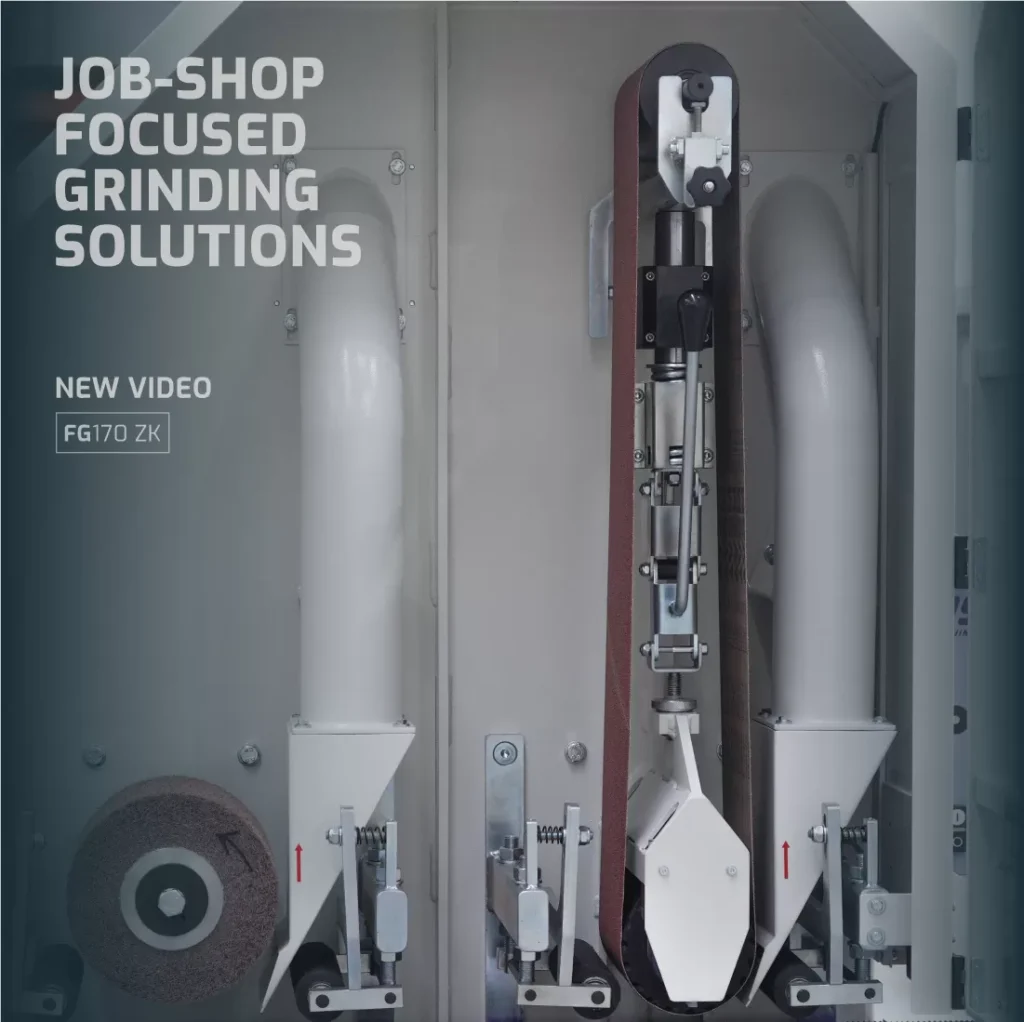

Job-shop Focused Grinding Solutions

Elevate your surface finishing process with job-shop grinding solutions, specifically engineered for flat surfaces. This newsletter showcases three versatile models perfect for rectangular and square tubes, flat bars, and sheet metal.

2x Faster Finishing Process on Flat Bars and Rectangular Tubes

Inserted in the FG’s machines family, FG220’s big sister, FG220 4ZV, ensures an excellent quality dry surface finishing in rectangular tubes and flat bars up to 220mm width per 200mm height and it can work any length from 700mm.

NS Máquinas at TUBE Düsseldorf 2022

NS Máquinas will be exhibiting in TUBE Dusseldorf 2022 trade fair in Dusseldorf, Germany from 20th to 24th of June 2022. This exhibition is important to see and test the latest technologies and machinery in action, meet the market representatives and find new and valuable business partners. Considering this and NS Máquinas knowledge in the […]
